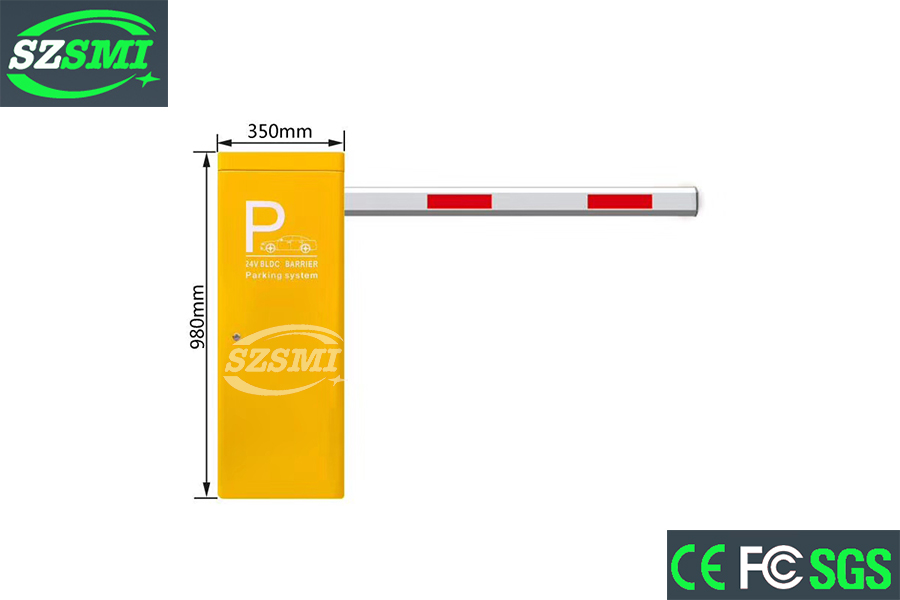

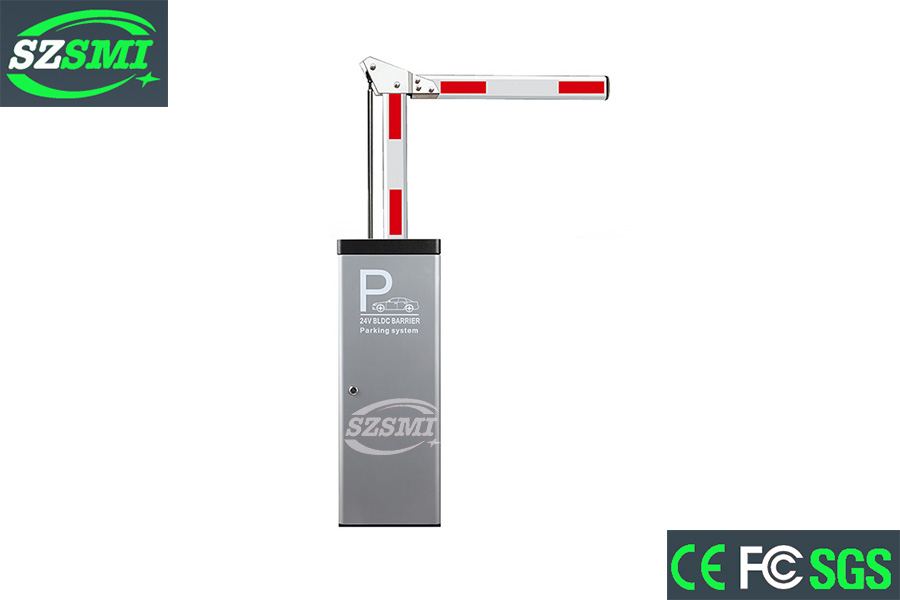

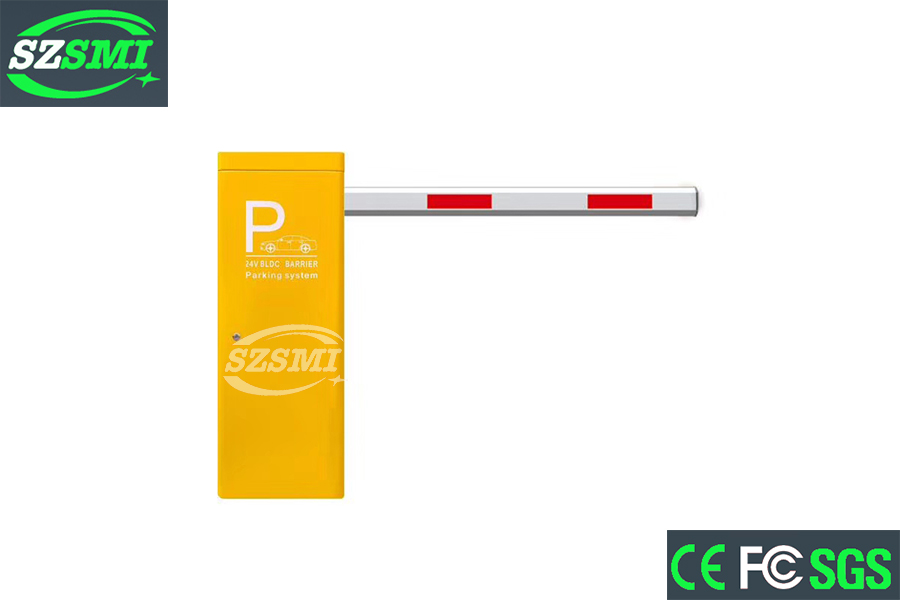

BG04-2 Barrier Gate/ Boom Barrier
  • BG04-2 Barrier Gate/ Boom Barrier
  • BG04-2 Barrier Gate/ Boom Barrier
  • BG04-2 Barrier Gate/ Boom Barrier
  • BG04-2 Barrier Gate/ Boom Barrier
BG04-2 Barrier Gate/ Boom Barrier
MESSAGE

1.  Mechanical and electrical integration:quickly assembly.easy maintenance.

2. Molding production: high precision, fast efficiency and guaranteed quality.

3. Worm-gear secondary variable speed transmission: motor wheel design, gate opening by manually when power off, no blocking, no oil leakage, large torque, low noise ,can normally operation at the temperature of minus 45 degrees,etc.

4. DC brushless motor designlow consumption, high efficiency, no overheat, wide speed adjustment.

5. Hall limit:automatically detects the limit when power on without debugging, detecting the motor speed at all times and running at constant speed.

6. Curved triple connecting rod structure,easy to adjust.

7. Arm direction quickly interchanged interchanged according Io different directions on construction site, reduce inventory and capital pressure.

8. Special DC brushless controller:use integrated chip drive,fast processing speed,powerful function: 24V low voltage power supply ,adapt to global voltage.



Functions

1 .3-6sec adjustable lifting time

2.Arm direction can be quickly interchanged.

3.Barrier gate up &down signal relay switch output.

4.R&G Traffic light relay switch signal output.

5.External loop detector signal anti-smashing interface.

6.Infrared sensor signal anti-smashing interface.

7.High-sensitivity arm auto reverse function

8.Parking system interface.

9. Motor working life 6 million times.

10. The cabinet is designed in European style, with high-end automobile painting technology.





Technical Data

Working Temperature

-50℃~+85℃

Power Supply

24/100/240VAC, 50/60Hz

Open/close Speed

3-6 Sec adjustable

Rated Power

200W

Driving Method

24V DC motor

Humidity

90%

Remote Control Distance

100m (open, sunny weather)

Protection Grade

IP55

Motor No-load Speed

3000r/min

Max Boom Length

6m

Motor working times

6 million times
