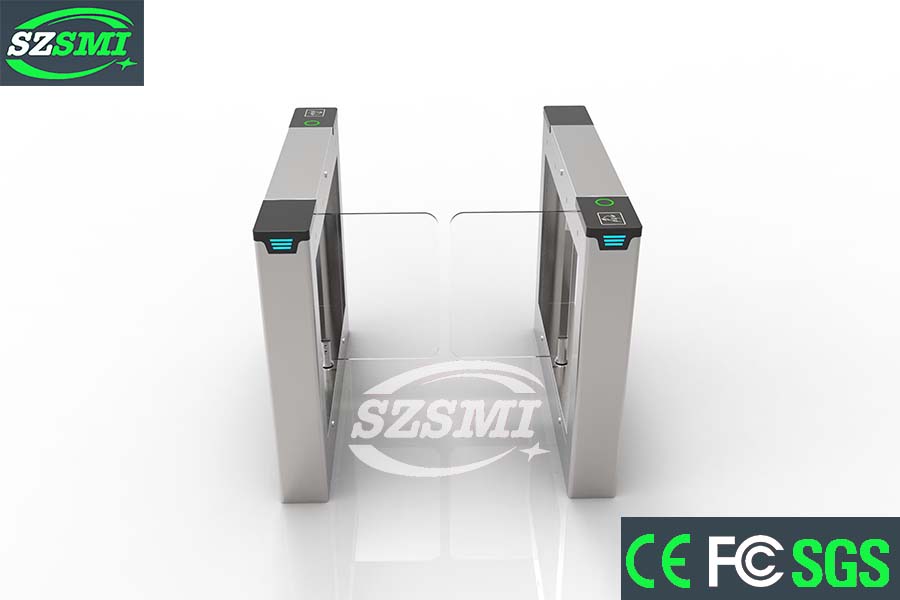

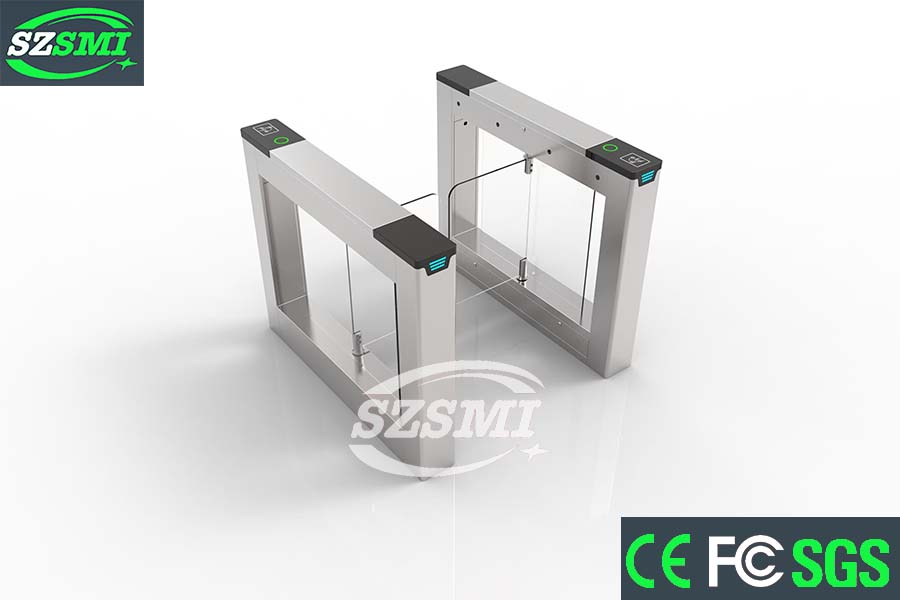

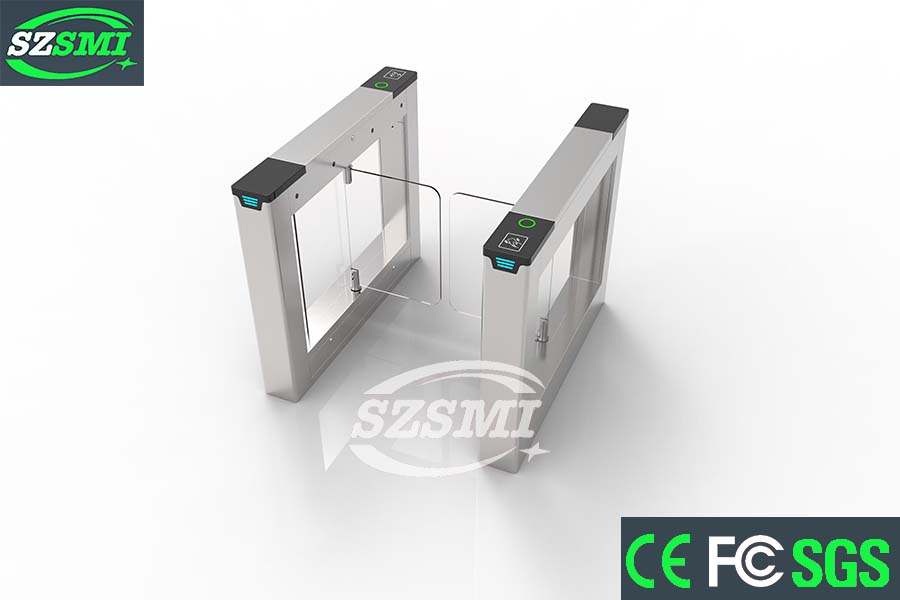

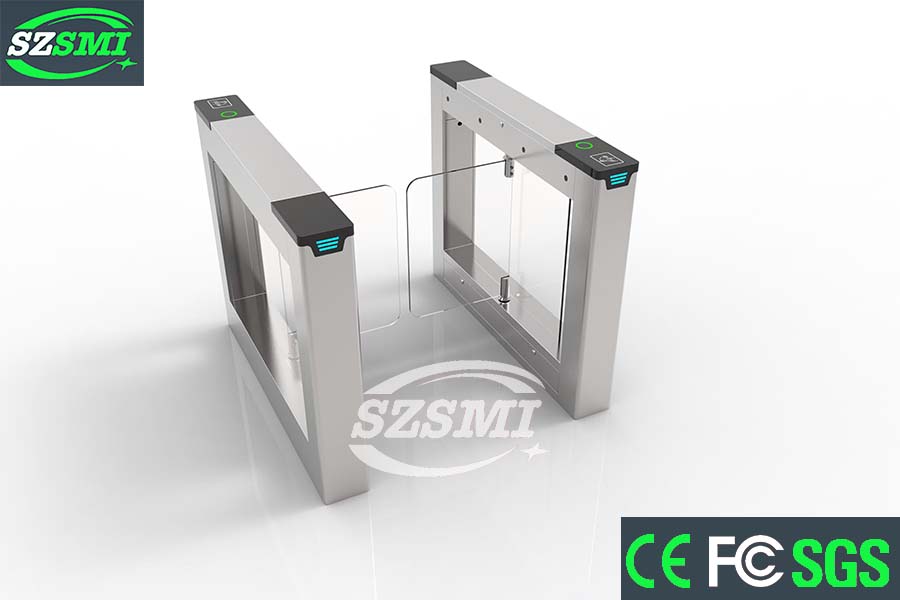

UNI-SW01 Swing gate
Feature
Through the main control on the half-built small-press plate, Programmable devices show running status.
When valid card is read and passenger passed, arm can be delayed to close from 1-10s which can be set on the control panel.
One-directional, bi-directional function.
Auto-reposition function: After card is read, if passenger does not pass within regulated time period, swing gate will cancel this passing permission, The regulated time period for passing can be set by management.
If passenger passes without card being read or valid card read, Swing turnstile gate will alarm until passenger gets back from the Swing turnstile gate and then uses a valid card to be read for passing.
Erosion control features, in the absence of gate opening signal receipt, the arm will automatically be locked.
Anti-rush function: if there is no open signal arm will hold tightly.
Adjustable arm swing synchronized (for the double pendulum case)
Adjustable normally open or closed, in order to meet the requirements of the different venues.
Connecting with a variety of reading device which can be linked to the receiving signal relay switch.
Swing gate is with RS485 interface for long distance control concern and the integration of various readers and writers. Managing computer directly through the remote control and management.
Auto power-off flap opening, power-on self-closing, Meets fire safety requirements.
Double anti-clipping function: photocell anti-clipping and mechanical anti clipping. When passenger is going through the Swing turnstile gate, photocell will detect this situation and will not close. After passenger has passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatically or stop working for a while with very slight force. Also it will alarm.
Direction display to guide passenger which direction to go.
Card-reading with memory or without memory function.
Swing turnstile gate can control the population inside in the control of software.
Stable running with little noise.
Technical parameter
|
UNI-SW01 |
|
|
Power Supply Voltage |
AC220V±10V,50±10HZ |
|

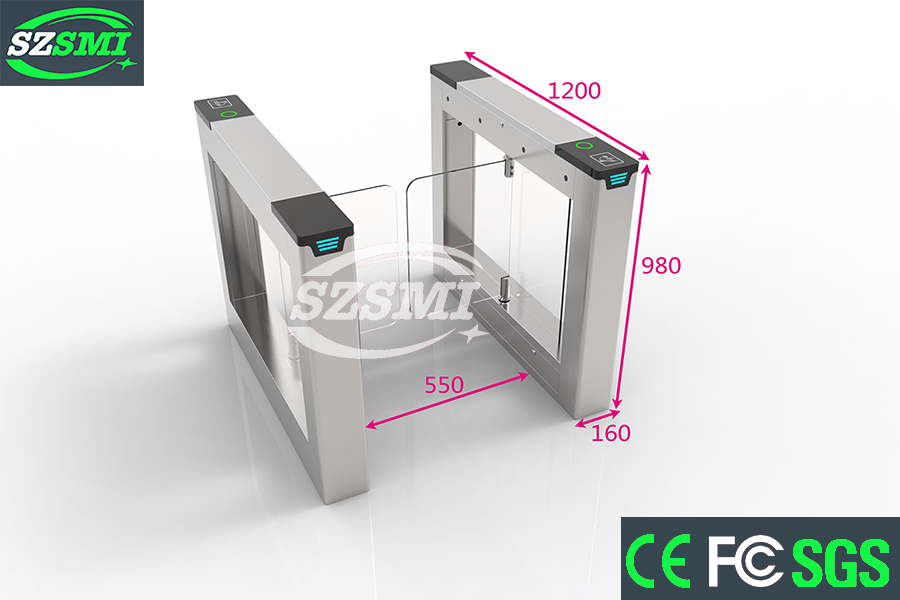

Housing Size |
1200*160*980mm |
|
Drive Current/Drive Motor |
≥10mA |
|
Swing Angle |
0-180 |
|
Communication Interface |
RS485/RS232 |
|
Working Environment |
indoor or outdoor(with a tent over) |
|
Machine center |
DC Brushless motor |
|
Working Mode |
one directional or bi-directional optional |
|
Housing Material |
SUS304 stainless steel optional |
|
Passing Speed |
40persons/min(normal open mode) |
|
DC motor |
200w 24v |
|
Control type |
IC/ID/Barcode control accepted |
|
Communication distance |
≤1200m |
|
Max Channel Width |
600~900mm |
|
Working Temperature |
-25℃~-+60℃ |
|
Relative Humidity |
≤90% non-condensing |
|
IP Degree |
IP68 |
